9013 Fifth Wheel Industrial Tub Grinder

The DuraTech Model 9013 Industrial Tub Grinder is a powerhouse capable of grinding tree stumps at the rate of 350 cyph (267.59 cumph) with its 950 HP (708.4 kW) CAT C27 Tier II Diesel Engine. Designed and constructed to handle tough jobs, the 9013 combines power with efficiency to get the job done.

Download Manual Download Brochure

Features

Self-Cleaning Air Intake System

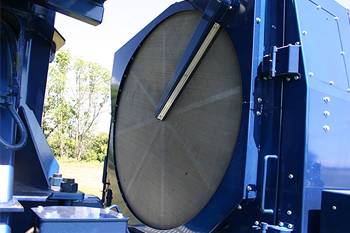

In order to provide constant clean air to the engine and radiator, the 9013F employs a hydraulically powered self-cleaning air intake system with 3,400 square inches (21,635.4 sq cm) of air passages. The self-cleaning air intake system reduces maintenance, provides easy access to the radiator for servicing, and allows for flexible positioning of the grinder.

Command Console with Optional Remote Control

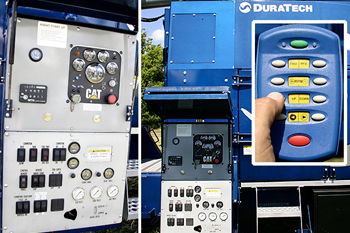

The 9013F command console features master engine controls, gauges, and shutoff. Also included on the command console are electric over hydraulic controls for the clutch, governor, and stacking conveyor. The optional 6-function remote controls engine stop, tub rotation, stacking conveyor, and optional tub cover.

Caterpillar C27 Electronic Diesel Engine with Enclosed Engine Compartment

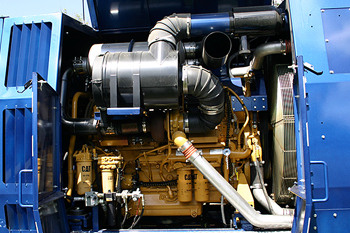

The 9013F is powered by a 950 HP (708.4 kW) Caterpillar Electronic diesel engine and is backed up by Caterpillar’s superior service and reliability. The 9013F is capable of grinding trees at the rate of 350 cu. yds/hr (267.59 cu. m/hr) with the 950 HP engine. The engine is housed in an enclosed engine compartment to protect the engine from debris while reducing noise levels.

PT-Tech HPTO Oil Cooled Clutch

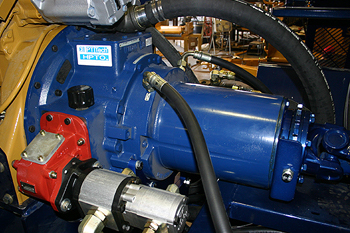

The 9013F Industrial Tub Grinder is equipped with a self adjusting PT-Tech HPTO oil cooled clutch. This clutch is microprocessor controlled with a built-in torque limiter and brake that provide superior protection for the engine and drive line.

Single Drive Orbit Motor Drives the Tub

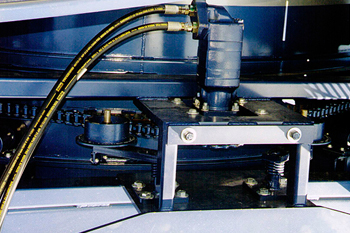

Utilizing a heavy-duty 120H drive chain, a continuous chain sprocket around the tub, an 8” (20.32 cm) heavy-duty tub channel, and dual spring adjustable chain tension, the tub is driven by a single orbit motor. Tub speed is controlled by the electronic governor.

56” Rotor

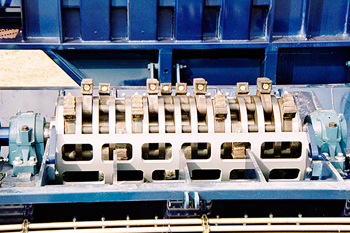

The 9013F industrial tub grinder is equipped with a 56” (142.24 cm) rotor mounted on a 7” (17.78 cm) shaft with 4-7/16” (11.27 cm) greasable bearings. The dynamically balanced rotor uses 28 fixed hammers.

36" Wide Belly Belt

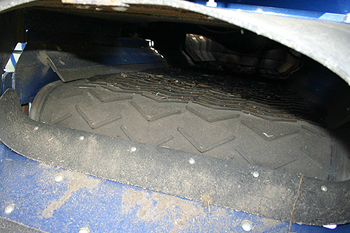

The 36” (91.44 cm) wide impact-resistant belly belt carries the finished product to the stacking conveyor.

36” Wide x 26’ Long Oscillating Top Drive Stacking Conveyor

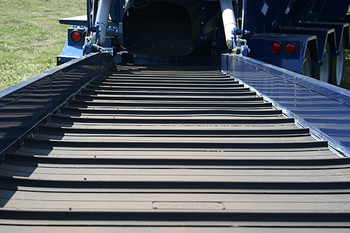

The 36” (91.44 cm) wide by 26’ (7.92 m) long stacking conveyor allows the operator to load material into a truck or onto an existing pile. Additionally, the stacking conveyor swings 50 degrees from side-to-side. An optional magnetic roller and aluminum chute remove ferrous metal from the finished product.

Find a DuraTech Dealer

Standard Options

  • HPTO oil cooled clutch
  • Single orbit motor tub drive through 120H chain
  • 36” wide stacking and belly belts
  • Self-cleaning air intake system

Optional Features

  • Remote control
  • Magnetic roller complete with aluminum deflector chute
  • Screen sizes
  • Lockable steel toolbox
  • Tub cover

Specifications

WEIGHT
Weight w/Fifth Wheel Hitch 69,800 lbs. (31,668.8 kg)
TRANSPORT DIMENSIONS
Transport Width 11 ft. 9-1/4 in. (3.58 m)
Transport Height without Loader 11 ft. 11-1/2in. (3.65 m)
Transport Length 46 ft. 8 in. (14.22 m)
CHASIS FEATURES
Engine CAT C27 950 (708.4 kw) HP
Axle (3) - 22,500 lbs. (10,205.82 kg)
Electrical 24 Volt Machine
Tires 255/70R X 22.5
Weight on Hitch Pin w/o Loader 13,800 lbs. (6,259.6 kg)
Fuel Capacity 300 Gallons (1,135 Liters)
Hydraulic Oil Capacity 110 Gallons (416.4 Liters)
Lights Clearance, Directional
TUB
Tub Width 12 ft. 6 in. (3.81 m)
Depth 56 in. (142.24 cm)
Tub Diameter at Base 10 ft. (3.05 m)
Tub Wall 3/8 in. (.953 cm) Thick
Tub Floor 1/2 in. (1.27cm) Thick AR Steel
Tub Drive 120H Chain, Single Drive Hydraulic Motor
Service Access 90° Tilting Tub
Tub Speed Sensor Electronic Self Governing
CONVEYORS
Stacking Conveyor 26 ft. Long (7.92 m) x 36 in. (91.44 cm) Wide
Belly Conveyor 36 in. (91.44 cm) Wide Impact Resistant
HAMMERMILL
Hammers 20 Fixed Single Bolt
Rotor - Shaft Diameter 7 in. (17.78 cm) Alloy Steel
Rotor Length 56 in. (142.24 cm.)
Rotor Plates 18 in. (45.72 cm) Diameter x 1-1/2 in. (3.81 cm) Thick
Feed Opening 58-1/2 in. x 26-1/2 in. (148.59 cm x 67.31 cm)
Screen Area 3,140 Square Inches (20,258 sq. cm)
Hammer Rods (8) - 2 in. Diameter (5.08 cm)
Bearings 4-7/16 in. (11.27 cm) Greasable Bearing
Hammermill Drive Direct Drive through HPTO Oil Cooled Clutch
