6010 Track Industrial Tub Grinder

You Asked For It and We Got It

The DuraTech 6010 is built for extreme wear and tear and comes equipped with a powerful Caterpillar C15 Tier III electronic diesel engine in optional sizes.

Easy operation is the key. Thanks to remote controls and a microprocessor-controlled wet clutch, it’s easier than ever to operate. The self-cleaning air intake system helps protect the engine, reduce engine noise, and extend the life of your machine. No matter the terrain, the DuraTech 6010 gets the job done.

Download Manual Download Brochure

Features

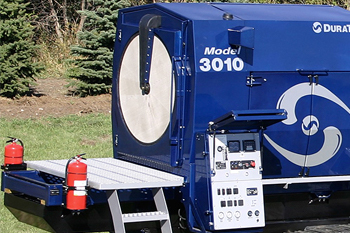

Rotary Self-Cleaning Screen with Enclosed Engine Compartment

The self-cleaning screen combined with the enclosed engine compartment reduces maintenance and noise, and provides for flexible positioning of the grinder. The door on the screener and the three doors per side on the engine compartments provide easy access to the radiator, oil coolers, and engine for servicing.

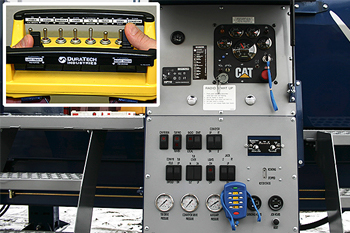

Command Console with Remote Control

The model 6010T command console features master engine controls, gauges, and shutoff. Also included on the command console are electric over hydraulic controls for the clutch, governor, and stacking conveyor. The 6-function remote controls engine stop, tub rotation, stacking conveyor, and optional tub cover.

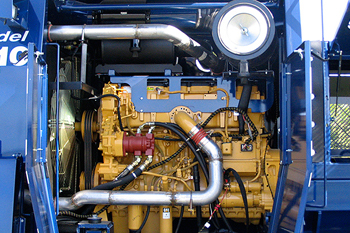

C15 Caterpillar Electronic Diesel Engine with Enclosed Engine Compartment

The 6010T is powered by either a 475 HP (254.2 kW) or a 540 HP (401.7 kW) C15 Caterpillar Electronic diesel engine that is backed up by Caterpillar’s superior service and reliability. The engine is housed in an enclosed engine compartment to protect the engine from debris while reducing noise levels.

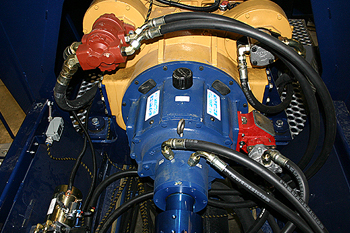

PT-Tech HPTO 14 Wet Clutch

The 6010T Industrial Tub Grinder is equipped with a self-adjusting PT-Tech HPTO 14 wet clutch. This clutch is microprocessor-controlled with a built-in torque limiter and brake that provide superior protection for the engine and drive line.

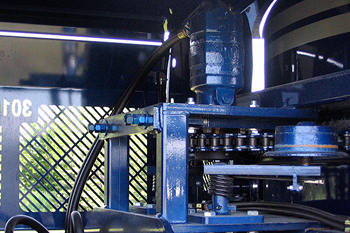

Single Drive Orbit Motor Drives the Tub

Utilizing a heavy-duty 120H drive chain, a continuous chain sprocket around the tub, an 8” (20.32 cm) heavy-duty tub channel, and dual spring adjustable chain tensions, the tub is driven by a single orbit motor. Tub speed is controlled by the electronic governor.

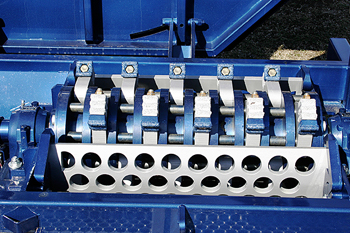

44” Rotor

The 6010T Industrial Tub Grinder is equipped with a 44” (111.76 cm) rotor mounted on a 6” (15.24 cm) shaft with 4” (10.16 cm) greasable bearings. The dynamically balanced rotor may be used with either 20 fixed hammers or 40 swinging hammers.

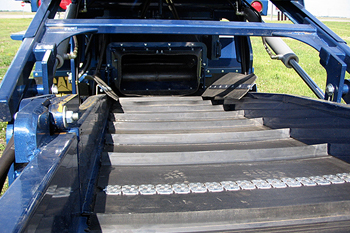

30" Wide Belly Belt

The 30" wide impact-resistant belly belt carries the finished product to the stacking conveyor.

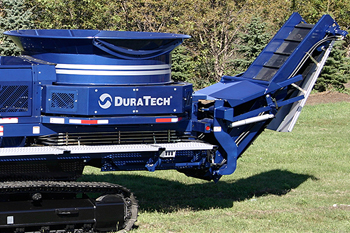

30” Wide x 10’6” Long Compact Stacking Conveyor

The 30” (76.2 cm) wide by 10’6” (3.2 m) long compact stacking conveyor allows the operator to load material into a truck or onto an existing pile. An optional magnetic roller and aluminum chute remove ferrous metal from the finished product. The standard 30” (7.62 cm) wide by 26’ (7.92 m) long stacking conveyor may be ordered as an option.

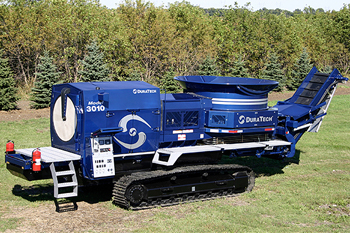

Caterpillar 320L Steel Track System

The 6010T is equipped with a 20” (50.8 cm) wide by 15’ (4.57m) long steel Caterpillar 320L track system.

Find a DuraTech Dealer

Standard Options

  • Command console
  • 44” router mounted on 6” rotor shaft with 4” greasable bearings
  • HPTO oil cooled clutch
  • Impact-resistant vulcanized belt
  • 30” x 26’ stacking conveyor
  • Single orbit motor tub drive through 120H chain

Optional Features

  • Remote control
  • Magnetic roller complete with aluminum deflector chute
  • Screen sizes
  • Lockable steel toolbox
  • Tub cover

Specifications

WEIGHT
Weight 44,620 lbs. (20,239.3 kg)
TRANSPORT DIMENSIONS
Transport Width 8 ft. 6 in. (2.59 m)
Transport Height 11 ft. 4 in. (3.45 m)
Transport Length 36 ft. 3 in. (11.07 m)
Ground Clearance 13 1/3 in. (33.8 cm)
CHASIS FEATURES
Tracks 20" (50.8 cm) x 15" (4.6 m) Steel Track (Will Climb 50% Incline Grade)
Electrical 24 volt machine
Engine: 475 hp (354.21 kW) CAT C15
540 hp (402.68 kW) CAT C15
Clutch HPTO 14 Wet Clutch
Fuel Capacity 160 Gallons (605.6 Liters)
Hydraulic Oil Capacity 50 Gallons (189.3 Liters)
TUB
Tub Width 10 ft. (3.05 m)
Depth 46 in. (116.84 cm)
Tub Diameter at Base 8 ft. (2.44 m)
Tub Wall 1/4 in. (.635 cm) Thick
Tub Floor 3/8 in. (.953 cm) Thick
Tub Drive Direct Hydraulic Motor
Service Access 90° Tilting Tub
Tub Speed Sensor Electronic Self Governing
CONVEYORS
Stacking Conveyor 10 ft. 6 in. L x 30 in. W x 8 in. D
(3.2 m L x 76.2 cm W x 20.3 cm D)
Belly Conveyor 30 in. (76.2 cm) Wide Impact Resistant
HAMMERMILL
Hammers 20 Fixed Single Bolt or 40 Swinging
Rotor - Shaft Diameter 6 in. (15.24 cm) Stress Proof Steel
Rotor Length 44 in. (111.76 cm)
Rotor Plates 16 in. (40.64 cm) Diameter x 1-1/2 in. (3.81 cm) Thick
Feed Opening 45 in. x 25 in. (114.3 cm x 63.5 cm)
Screen Area 2,403 Square Inches (15,503.19 sq. cm.)
Hammer Rods (8) - 1-1/2 in. (3.81 cm) Diameter 43 in. (109.22 cm) Long
Bearings 4 in. (10.16 cm) Pillow Block Bearing
Screens Split Screens 1 in. (2.54 cm) Thick
Hammermill Drive Direct Drive through HPTO Oil Cooled Clutch
